1376350-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1376350-2
Datasheet:
Description:

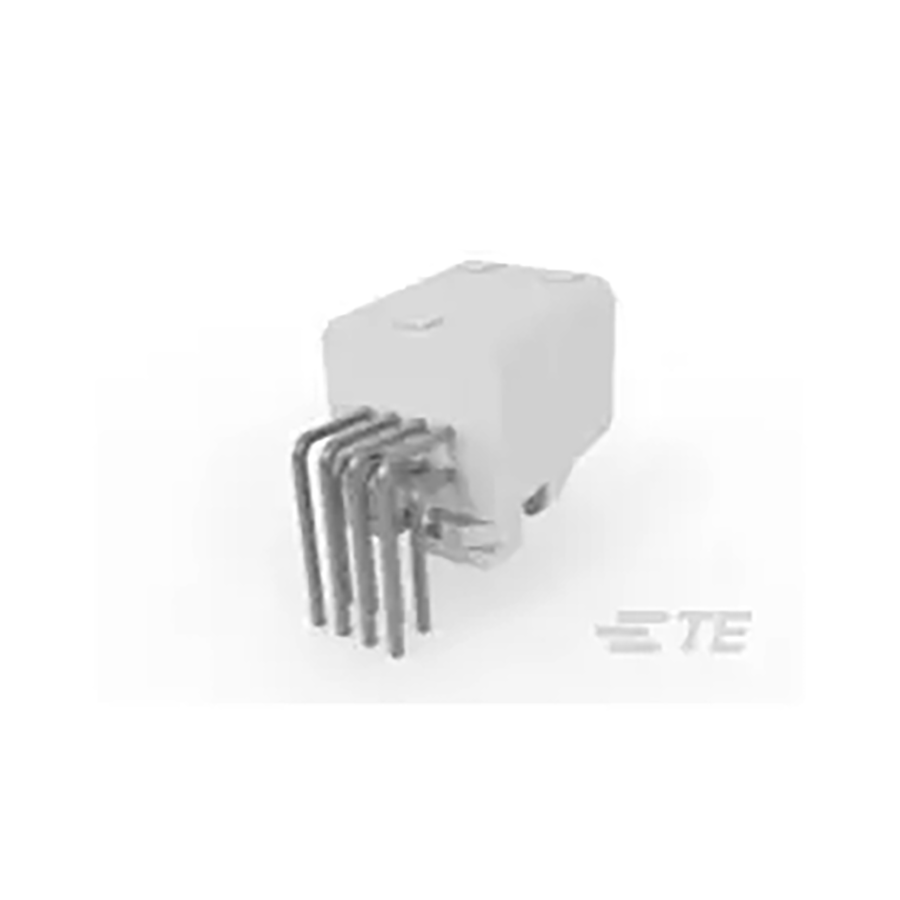

Headers and Wire Housings Through Hole Male Pin, Receptacle Number of Positions:8 Pitch:2.2098 mm
| Parameter | Value |
|---|---|
| Length | 24.4602 mm |
| Width | 14.1986 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 15.5 mm |
| Packaging | Tube |
| Depth | 24.47 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.2098 mm |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94HB |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| ELV | Compliant |
| Tab Width | 635 µm |
| Connector Type | Male Pin, Receptacle |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Housing Color | Natural |
| Contact Mating Length | 5.5118 mm |
| PCB Thickness | 1.6 mm |
| Mating Post Length | 5.5 mm |
| Tab Thickness | 640 µm |
| Number of Signal Positions | 8 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length | 4 mm |
Stock: 800
Distributors
pcbx
pcbxUnit Price$1.15536
Ext.Price$1.15536
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.15536 | $1.15536 |
| 10 | $0.98102 | $9.81020 |
| 25 | $0.92629 | $23.15725 |
| 50 | $0.87461 | $43.73050 |
| 100 | $0.82581 | $82.58100 |
| 300 | $0.77974 | $233.92200 |
| 500 | $0.73623 | $368.11500 |
